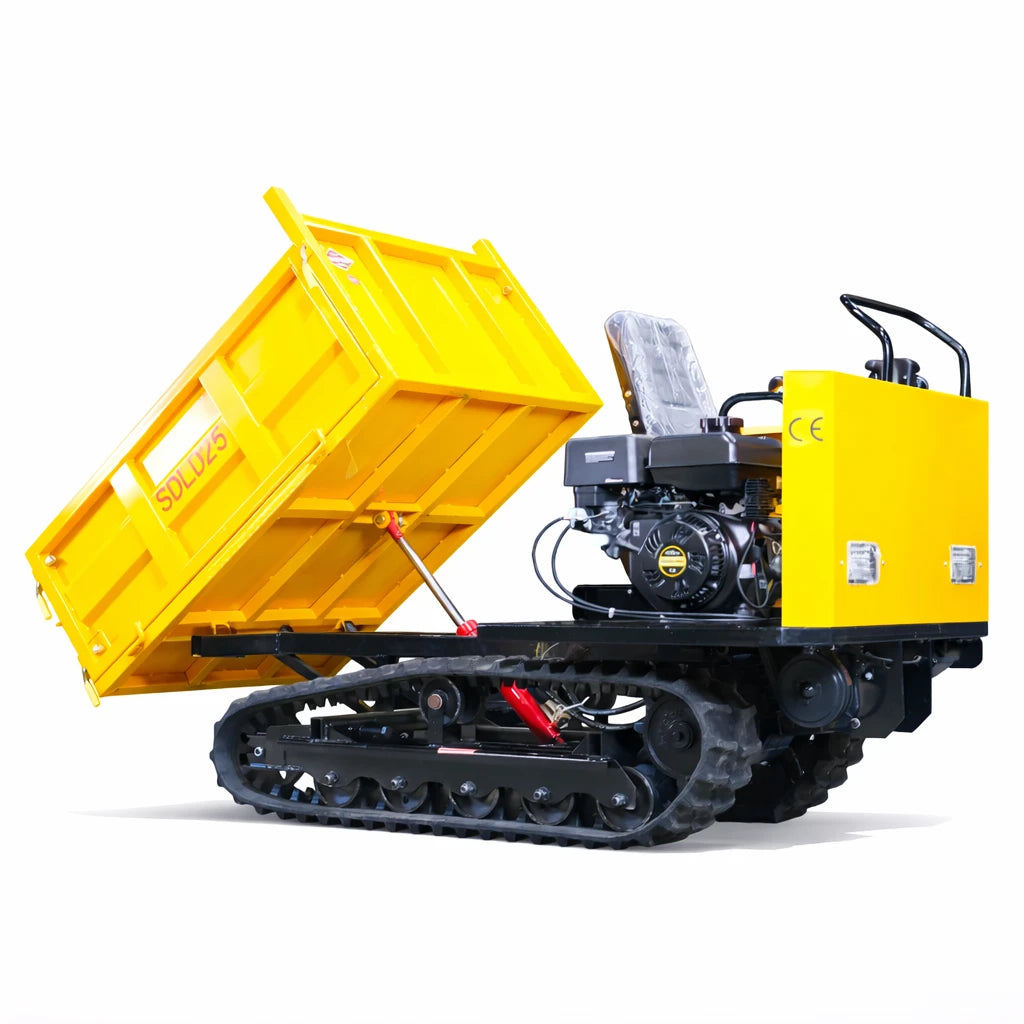

SDLD25 SDLANCH Mini Dump Truck
SDLD25 SDLANCH Mini Dump Truck
Couldn't load pickup availability
Key Highlights
-
Gasoline Engine – with electric start for reliable performance. Plenty of torque to haul heavy loads all day.
-
3,300 lb Dump Capacity – Heavy-duty hydraulic dump bed carries up to 1.5 tons of material. Move more in fewer trips and save on labor.
-
Compact & Maneuverable – Only about 3 ft wide, with skid-steer rubber tracks for a tight turning radius and go-anywhere traction. Easily fits through gates and navigates cramped sites.
-

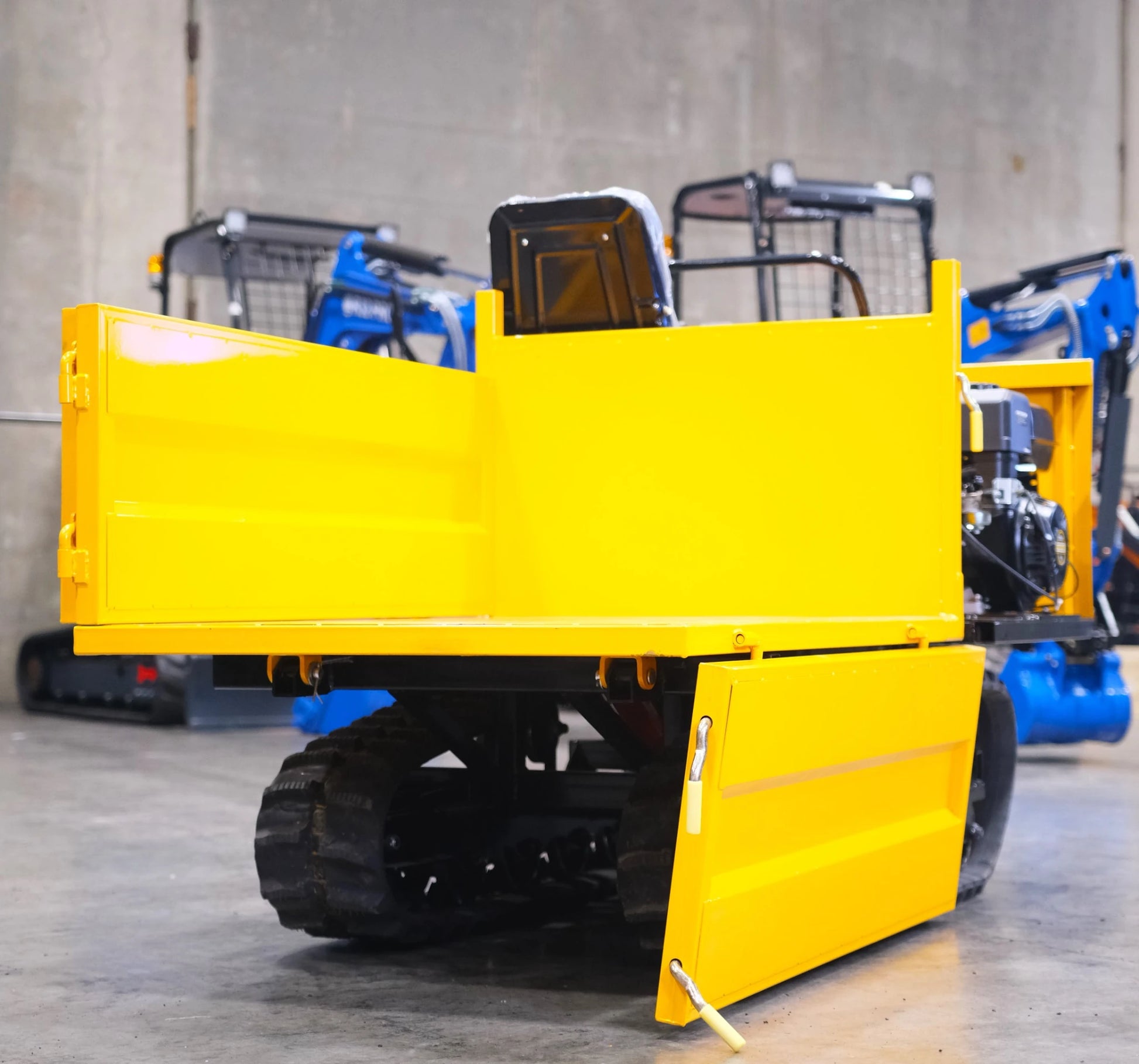

Removable Side Panels – 20″-high steel side walls and rear gate fold down or detach, converting the dumper into a flatbed. Great for loading pallets, logs, or bulky items from the side.
-

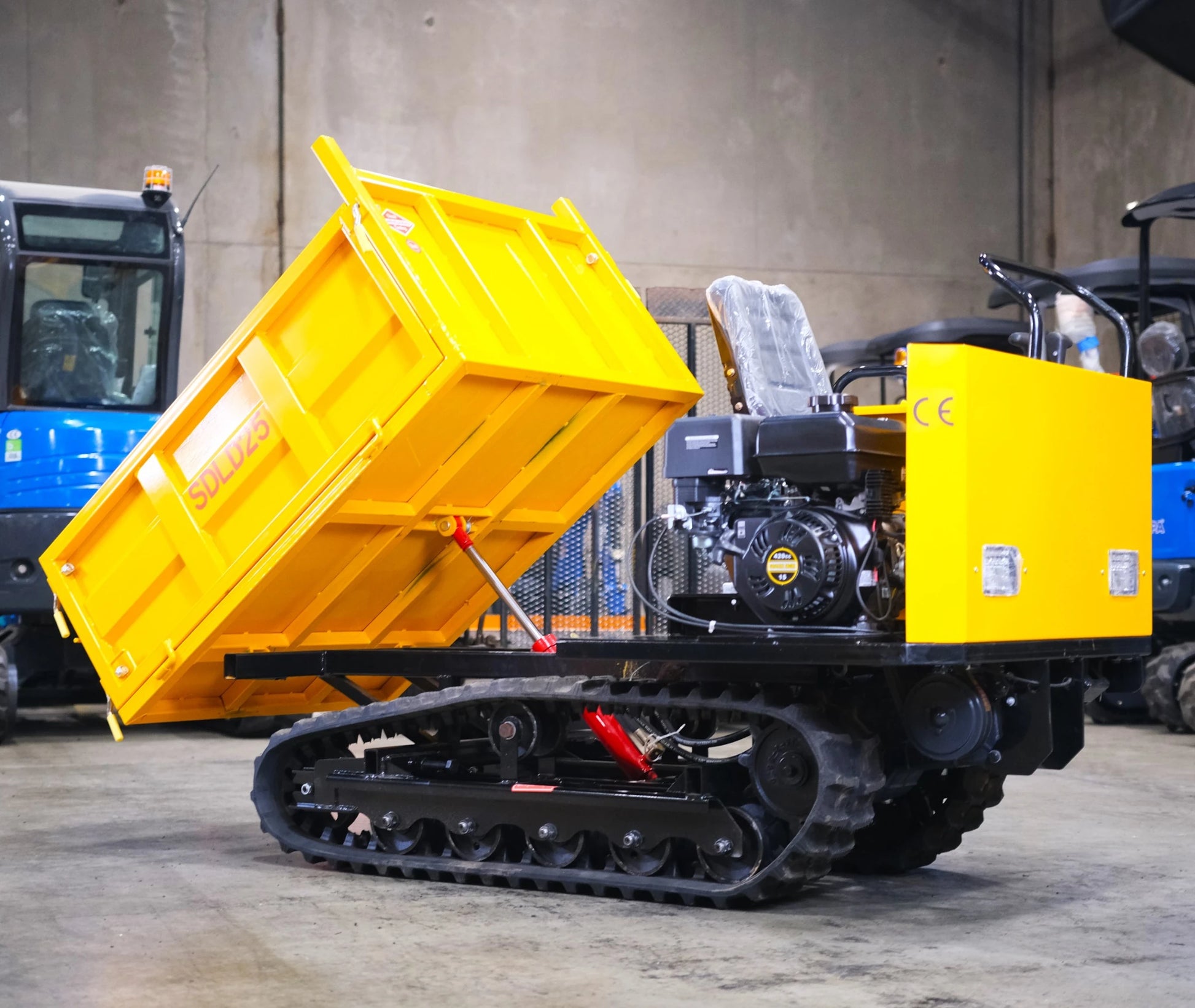

Hydraulic Dumping Bed – 4 ft long dump bed with powerful lift and high dump angle. Quickly unload soil, gravel, or debris right where you need it – no more back-breaking shovel work.
-
Rugged Build – All-steel construction, heavy-duty chassis, and 9″ wide tracks built to withstand daily use on construction sites, landscaping jobs, and farm projects. Low ground pressure means it’s turf-friendly too.
-
Easy Operation – Simple forward/reverse lever steering and 3-speed gear selector. Smooth controls make it easy for anyone to hop on and start moving material with minimal training.
Quick Specs
| Specification | Details |
|---|---|
| Engine | 420 cc (8.6 kW) single-cylinder Gasoline (electric start) |
| Power Output | ~15 HP (Briggs & Stratton class) |
| Max Load Capacity | 3,300 lb (1,500 kg) payload |
| Dump Bed | 51″ L × 37.5″ W × 20″ H steel bed; fold-down/removable sides & tailgate |
| Drive | Rubber tracks (9″ wide), skid-steer drive |
| Transmission | Guli 18 manual, 3 forward + 1 reverse gears(belt pulley drive) |
| Top Speed | ~9.3 mph in high gear (15 km/h) |
| Turning Radius | 75″ (1900 mm) minimum turning radius |
| Dimensions (L×W×H) | ~89.5″ × 43.5″ × 47.3″ (227×110.5×120 cm) overall |
| Operating Weight | ~1,100 lb (500 kg) machine weight (unloaded) |
| Fuel Capacity | Runs on standard gasoline (large fuel tank for all-day use) |
| Starter | Electric key start (battery included), plus recoil backup |

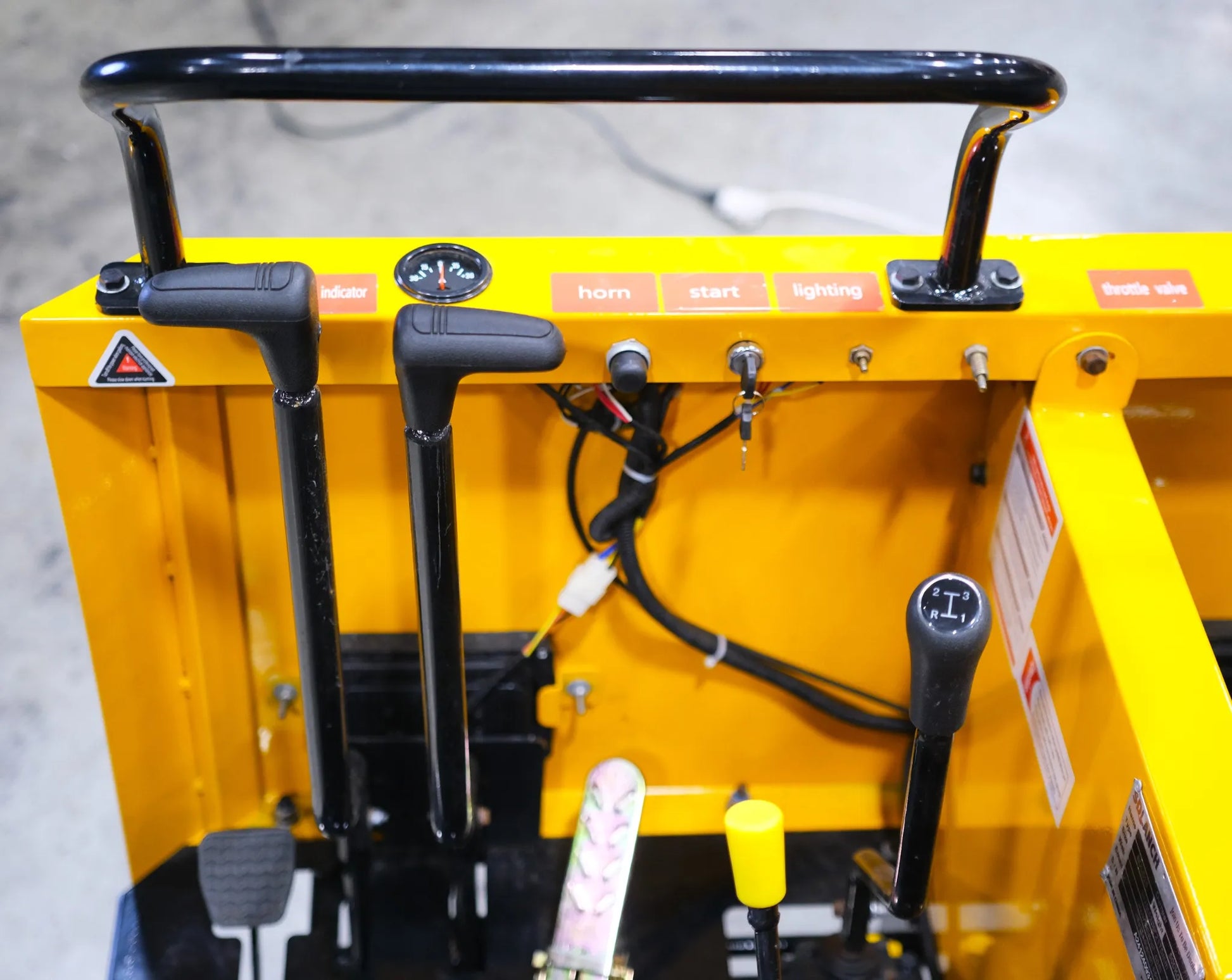

| Controls | Lever steering, throttle and brake controls, simple dash panel |
