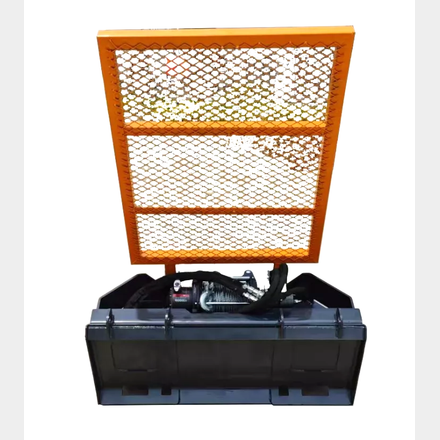

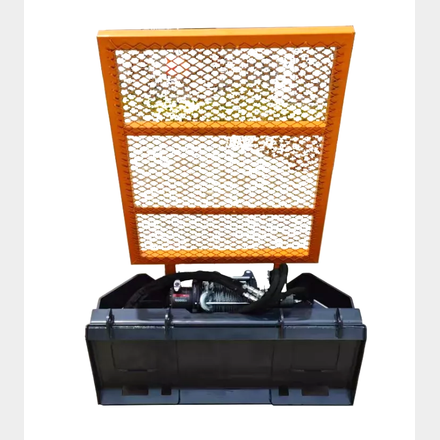

Arteer 15,000 skid steer winch

Arteer 15,000 skid steer winch

$1,500.00 USD
$1,500.00 USD
Sale Sold out

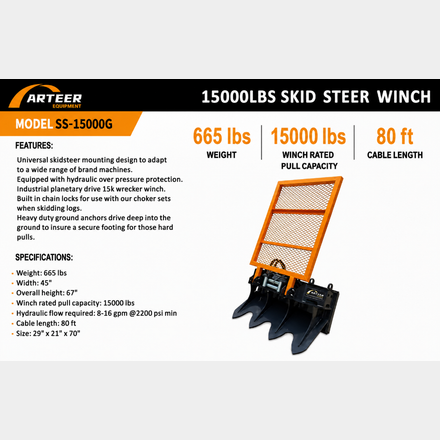

Technical Specifications
  • Pulling Capacity: 15,000 lbs (7.5 tons)
  • Hydraulic Requirements: 8–16 GPM flow at 2,200 PSI minimum
  • Cable Specs: 80 ft of heavy-duty wire rope with a forged latch hook
  • Weight & Width: Weighs approximately 665 lbs with a 45-inch working width
  • Mounting Type: Universal Skid Steer Quick Attach (SSQA) [1, 2, 3, 4]
    • Key Features & Design

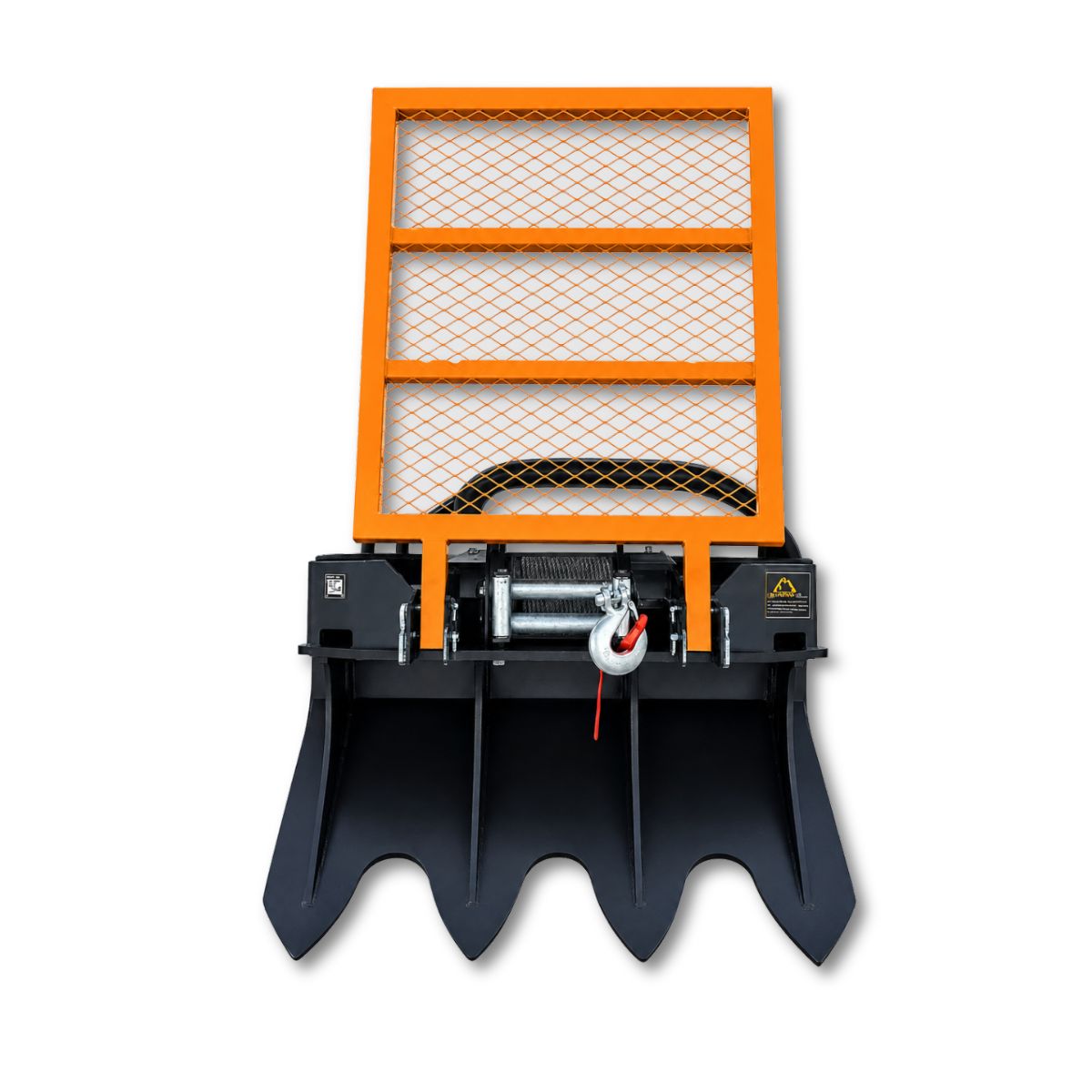

  • Ground Anchors:     Integrated ground-stabilizing spade/anchor blades bite into the dirt to prevent the loader from sliding during maximum-load pulls.     [1, 2]
  • Chain Locks: Built-in chain slots allow you to secure and skid logs directly without putting excess wear or tension loops back onto the cable drum. [1, 2]
  • Operator Safety Screen: Includes a heavy-duty steel front mesh shield/guard to protect the cab operator from snapping lines or flying debris. [1, 2, 3, 4]
  • Drive Operation: Full hydraulic power-in and power-out capability, backed by a manual free-spool clutch handle to quickly pull out line.
