CAPTOK CK-D680 Skid Steer Hydraulic Pile Hammer

Unused CAPTOK CK-D680 Hydraulic Pile Hammer Skid Steer Attachment

Description:

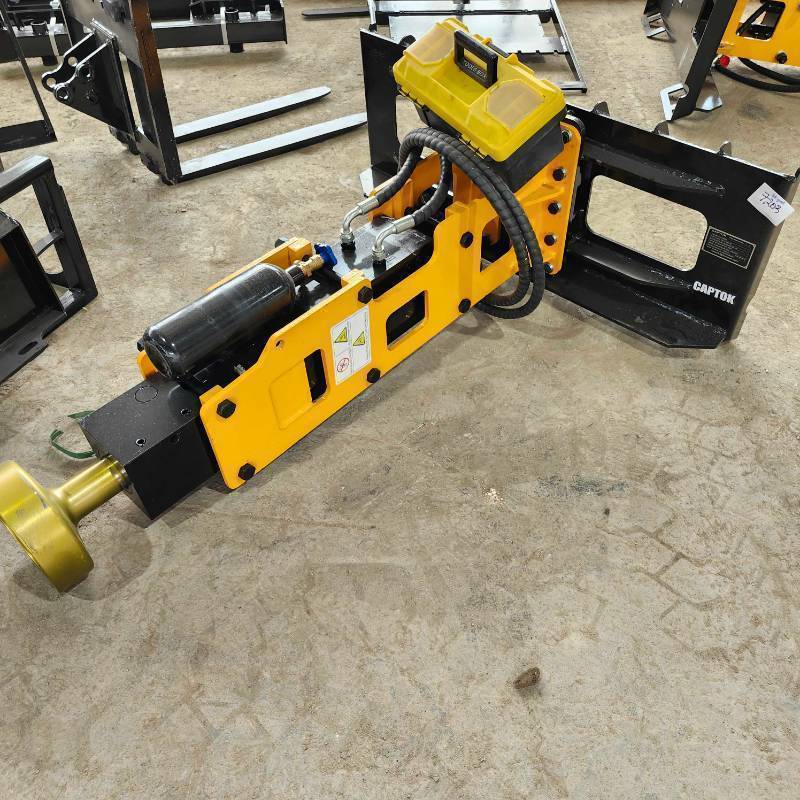

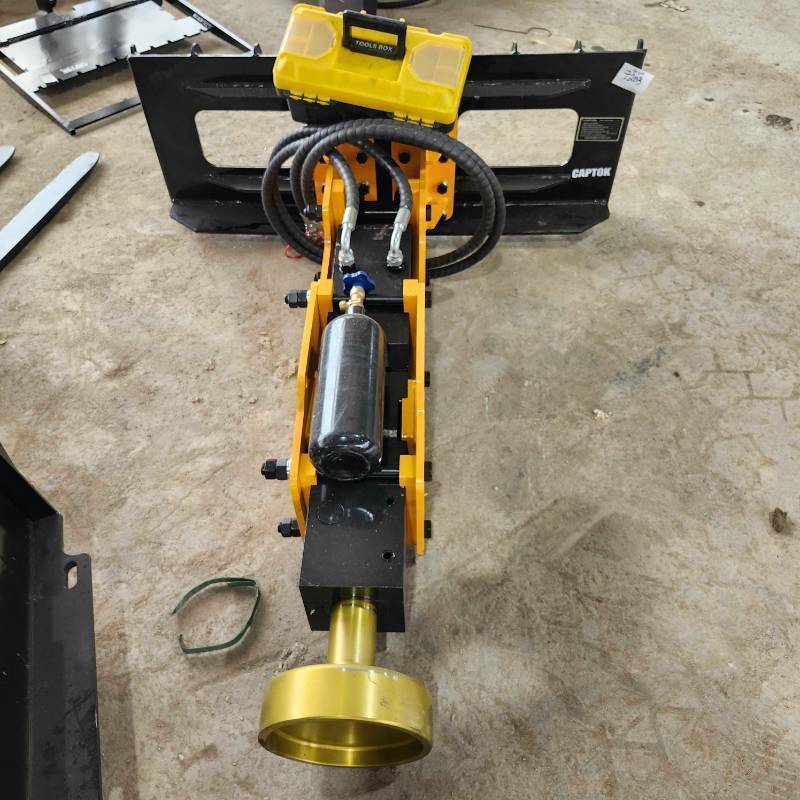

Heavy-duty CAPTOK hydraulic pile hammer attachment, model CK-D680, designed for skid steer loaders. Features a total length of 56 inches (1420mm) and built for powerful and efficient piling operations. Equipped with integrated hydraulic lines and a mounting bracket for easy installation.

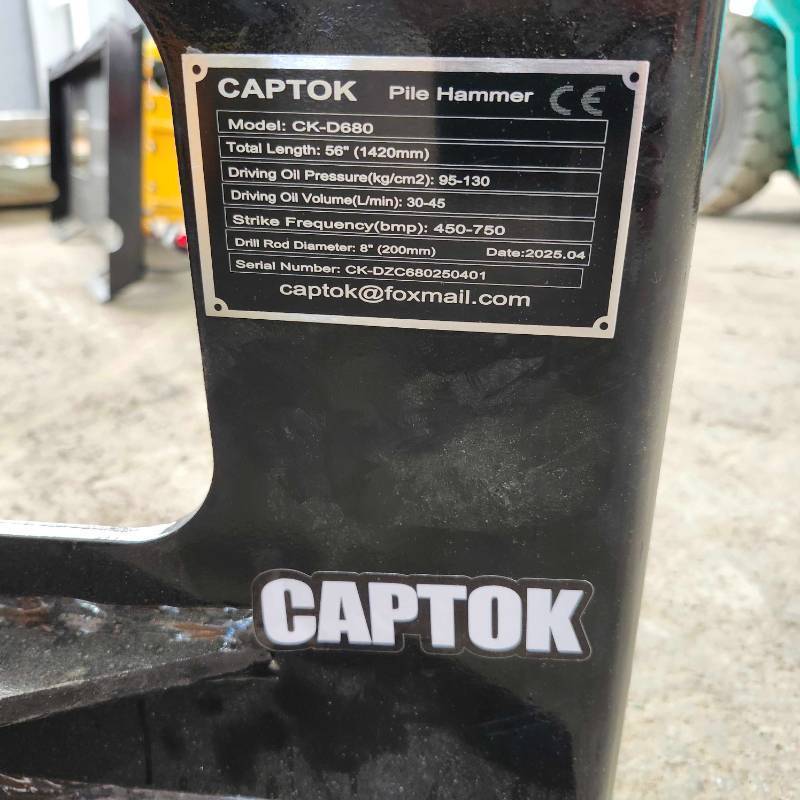

Specifications:

• Model: CK-D680

• Total Length: 56 in (1420 mm)

• Driving Oil Pressure: 95–130 kg/cm²

• Oil Flow Volume: 30–45 L/min

• Strike Frequency: 450–750 BPM (blows per minute)

• Drill Rod Diameter Capability: 8 in (200 mm)

• Construction: Yellow and black painted steel with brass impact head

• Includes: Integrated hydraulic lines, mounting bracket

• Condition: Unused
